In this page, we will use the heatmap to visualize the signal quality of the disposition.

load data

today = "2021-09-29"
json_data = fromJSON(file = paste0("data/json/", today, "/position.json"))

tagId_seq = unlist(lapply(json_data, function(x){x["tag_id"][[1]]}))
tagId = unique(tagId_seq)
nb_tag = length(tagId)

We are using “2021-09-29” data as an example.

data without NAs

dat <- data.frame(tag = unlist(lapply(json_data, function(x){x["tag_id"][[1]]})),
                  x = unlist(lapply(json_data, function(x){x["x"][[1]]})),
                  y = unlist(lapply(json_data, function(x){x["y"][[1]]})),
                  record_timestamp = unlist(lapply(json_data, function(x){x["record_timestamp"][[1]]})))
dat = dat[order(dat$record_timestamp),]
# dat = cbind.data.frame(dat, convert_date(dat$record_timestamp))
dat$x = as.numeric(dat$x)/100
dat$y = as.numeric(dat$y)/100

names_tag <- read.table(file = "data/tag_names_20210924.txt", header = T, sep = "\t")
names_tag = names_tag[names_tag$id%in%tagId, ]

tagId = names_tag$id
nb_tag = length(tagId)

dat = dat[dat$tag%in%tagId,]
# dat$label = factor(dat$tag, levels = names_tag$id, labels = names_tag$label)

x_na = which(is.na(dat$x))
y_na = which(is.na(dat$y))
cat("if x_na = y_na:", identical(x_na, y_na), "\n")
if x_na = y_na: TRUE
if (length(x_na)!=0){
  dat = dat[-x_na,]
}

list_tag <- split(dat, dat$tag)
for (k in 1:nb_tag){
  tag = tagId[k]
  dat_tag <- list_tag[tag][[1]]
  dat_tag$diff_ts = c(dat_tag$record_timestamp[-1]-dat_tag$record_timestamp[-nrow(dat_tag)],0)
  list_tag[tag][[1]] = dat_tag
}

choose a threshold for a minimum interrupted time interval

5s

thres = 5
cat("the threshold is", thres, "seconds.", "\n")
the threshold is 5 seconds.
dat_lowq = do.call(rbind.data.frame, list_tag)
dat_lowq = dat_lowq %>%
  filter(diff_ts>=thres & tag!="2e8d")

dat_lowq$x = as.numeric(sprintf("%.3f", dat_lowq$x))
dat_lowq$y = as.numeric(sprintf("%.3f", dat_lowq$y))
dat_lowq = dat_lowq[order(dat_lowq$record_timestamp),]

datatable(dat_lowq, rownames = F)

heatmap

plan <- read_excel("data/plan/Wall_lignes_firminy.xlsx")
plan = as.data.frame(plan)
plan$`Start X` <- as.numeric(plan$`Start X`)/100
plan$`Start Y` <- as.numeric(plan$`Start Y`)/100
plan$`End X` <- as.numeric(plan$`End X`)/100
plan$`End Y` <- as.numeric(plan$`End Y`)/100
colnames(plan) = c("Name", "Length", "Linetype Scale", "Angle", "Delta X",
                   "Delta Y", "Delta Z", "EndX", "EndY", "EndZ",
                   "StartX", "StartY", "StartZ")
p <- ggplot(plan) + theme_bw() +
  geom_segment(aes(x=StartX, y=StartY, xend=EndX, yend=EndY))

1x1

res = 1
q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "white", high = "red") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
0f0ea19 cfcforever 2021-10-07

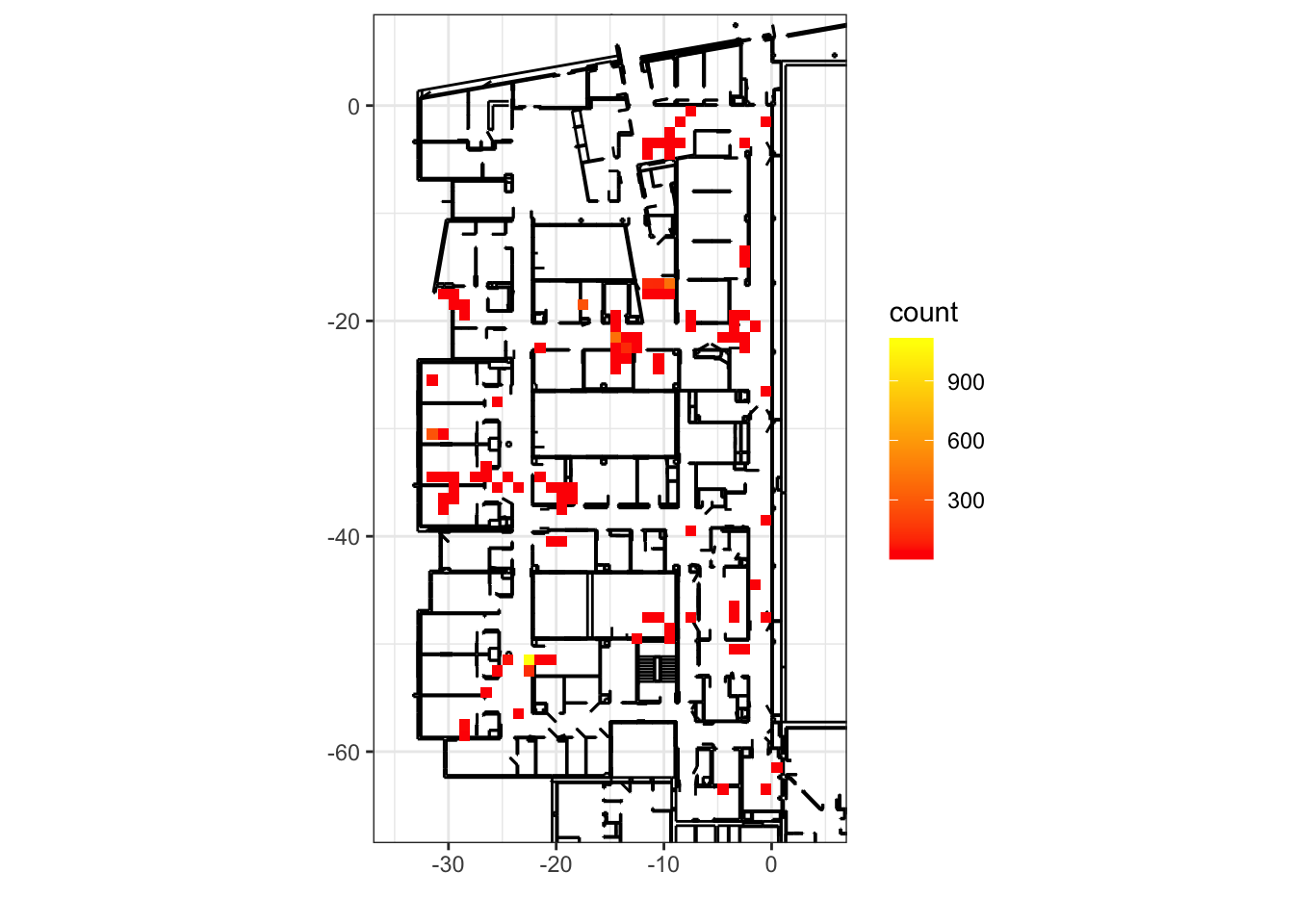

q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "red", high = "yellow") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
3778cb3 cfcforever 2021-10-07

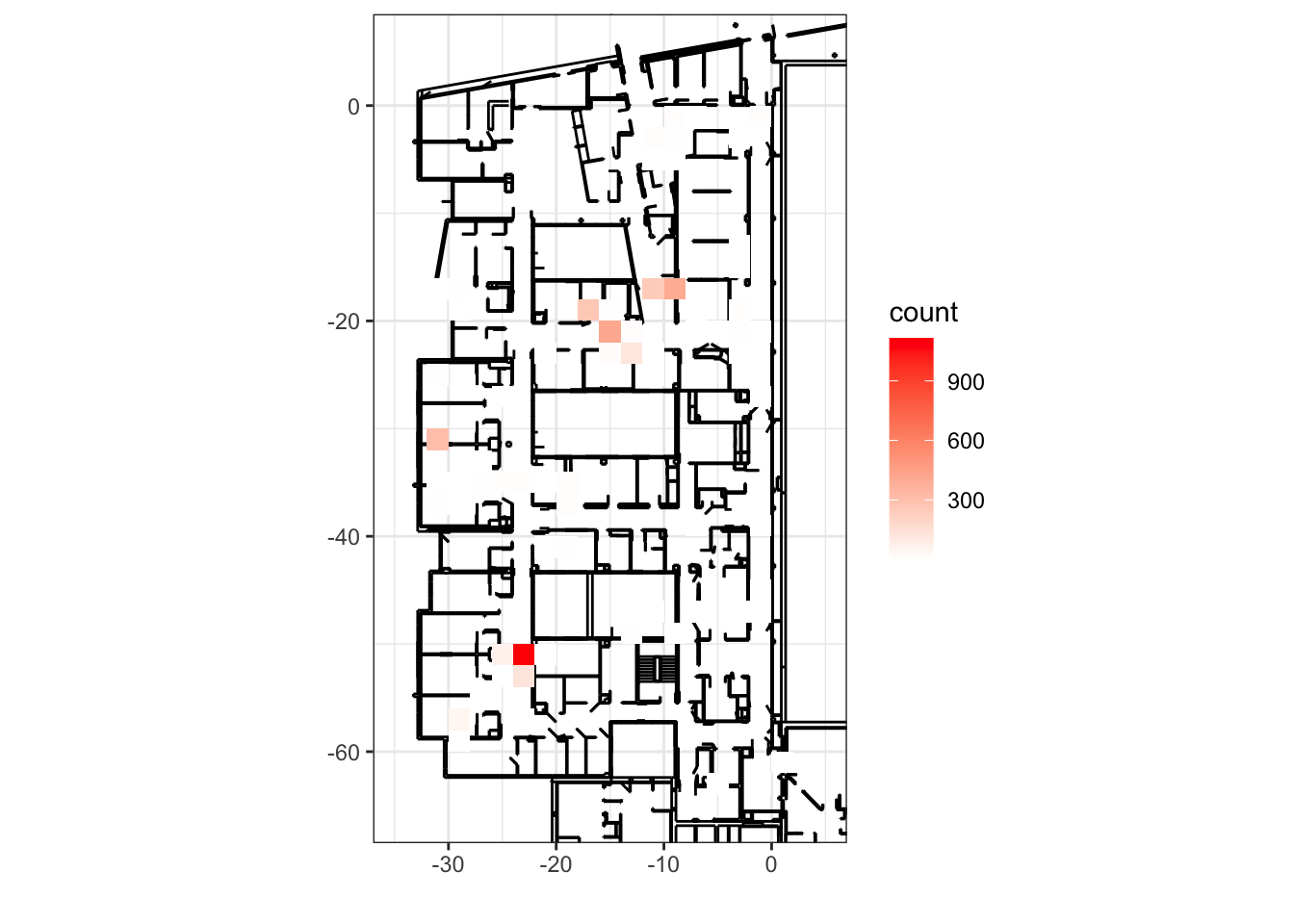

2x2

res = 2
q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "white", high = "red") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
0f0ea19 cfcforever 2021-10-07

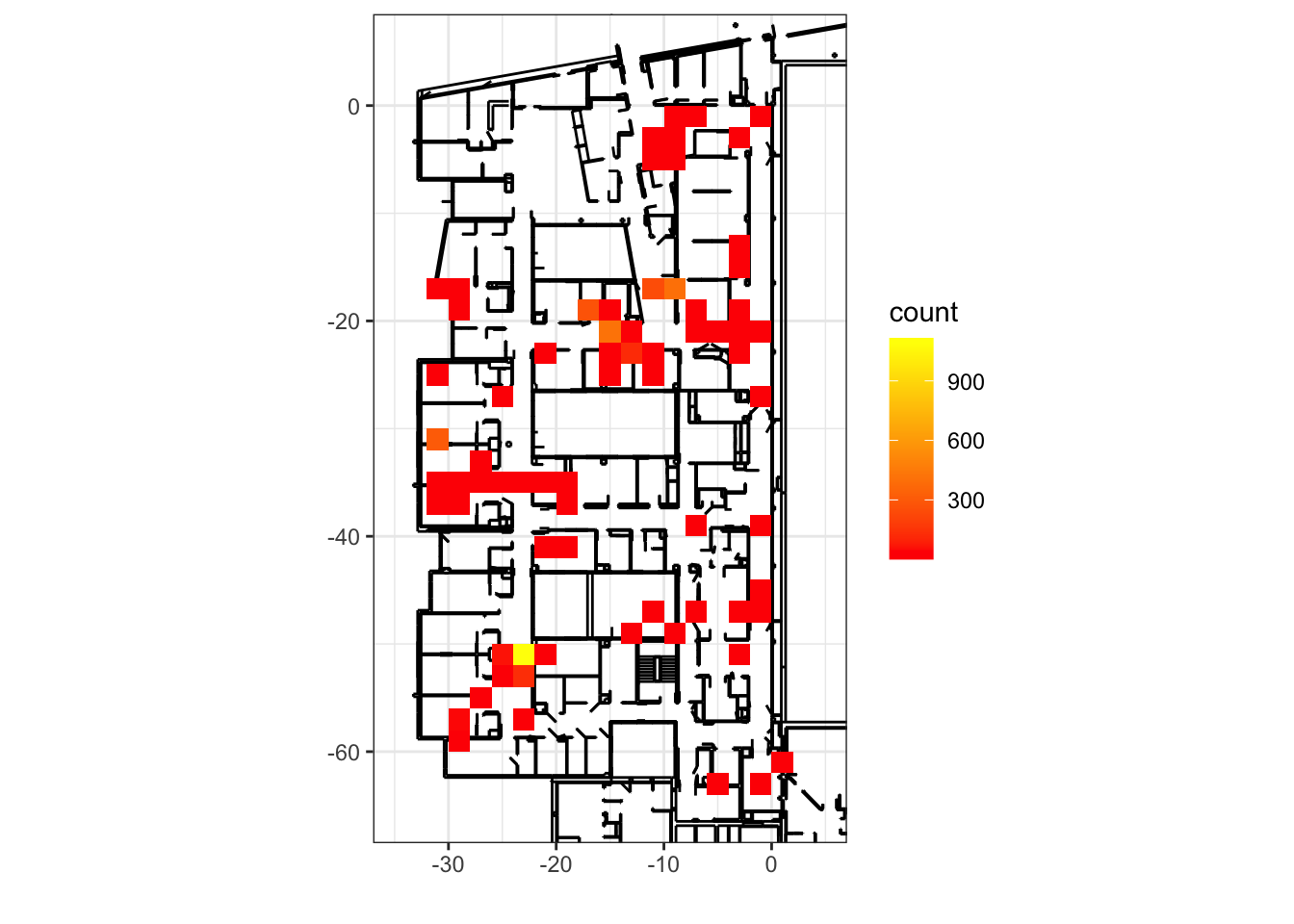

q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "red", high = "yellow") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
3778cb3 cfcforever 2021-10-07

10s

thres = 10
cat("the threshold is", thres, "seconds.", "\n")
the threshold is 10 seconds.
dat_lowq = do.call(rbind.data.frame, list_tag)
dat_lowq = dat_lowq %>%
  filter(diff_ts>=thres & tag!="2e8d")

dat_lowq$x = as.numeric(sprintf("%.3f", dat_lowq$x))
dat_lowq$y = as.numeric(sprintf("%.3f", dat_lowq$y))
dat_lowq = dat_lowq[order(dat_lowq$record_timestamp),]

datatable(dat_lowq, rownames = F)

heatmap

plan <- read_excel("data/plan/Wall_lignes_firminy.xlsx")
plan = as.data.frame(plan)
plan$`Start X` <- as.numeric(plan$`Start X`)/100
plan$`Start Y` <- as.numeric(plan$`Start Y`)/100
plan$`End X` <- as.numeric(plan$`End X`)/100
plan$`End Y` <- as.numeric(plan$`End Y`)/100
colnames(plan) = c("Name", "Length", "Linetype Scale", "Angle", "Delta X",
                   "Delta Y", "Delta Z", "EndX", "EndY", "EndZ",
                   "StartX", "StartY", "StartZ")
p <- ggplot(plan) + theme_bw() +
  geom_segment(aes(x=StartX, y=StartY, xend=EndX, yend=EndY))

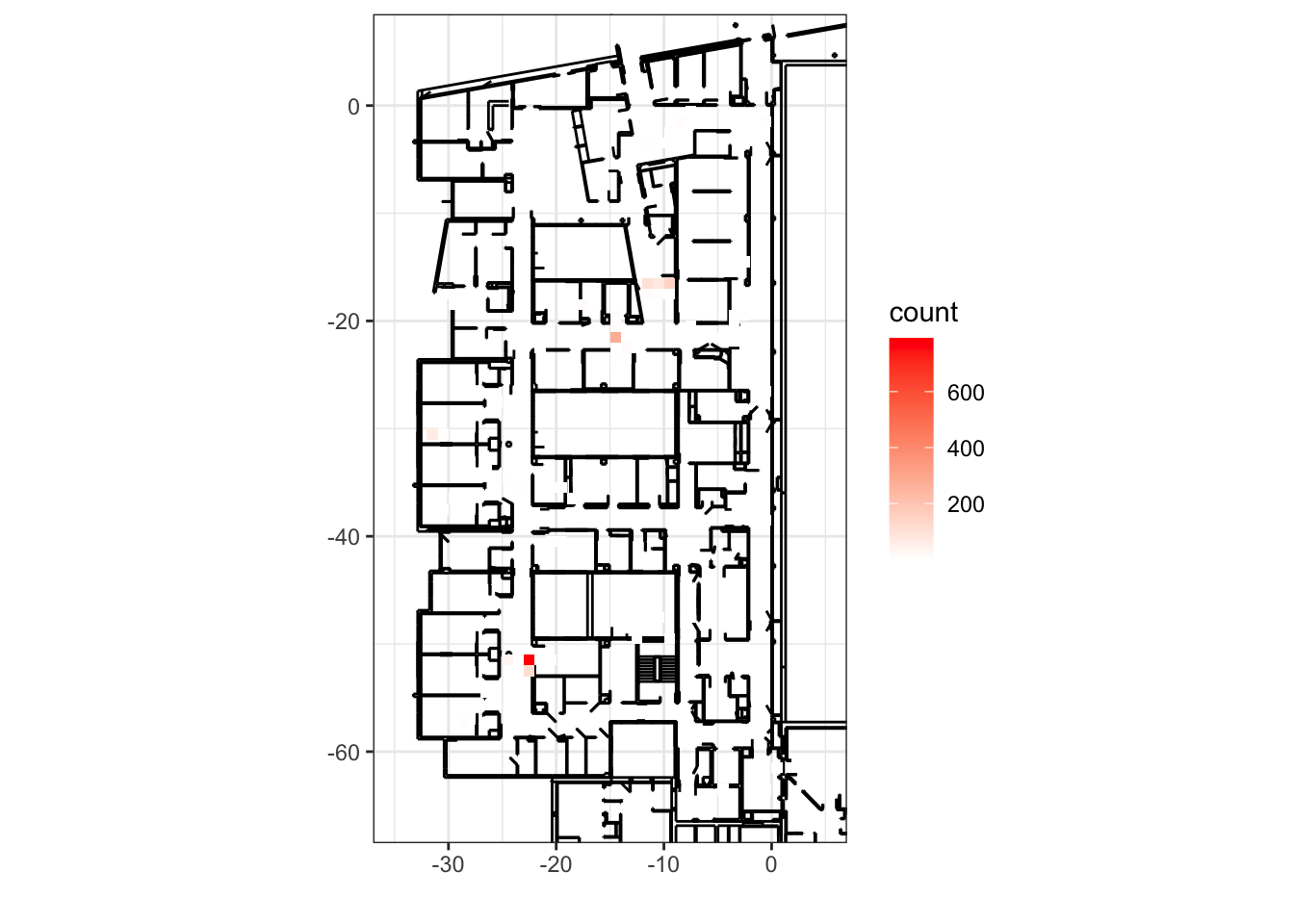

1x1

res = 1
q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "white", high = "red") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
4bcc428 cfcforever 2021-10-07

2x2

res = 2
q <- p +
  geom_bin2d(data = dat_lowq, aes(x = x, y = y), binwidth=c(res,res)) +
  scale_fill_gradient(low = "white", high = "red") +
  coord_equal(ratio = 1, xlim = c(-35,5), ylim = c(-65,5)) +
  labs(x = "", y = "")
print(q)

Version Author Date
8620f4c cfcforever 2021-11-14
521a8d5 cfcforever 2021-10-18
cc57acb cfcforever 2021-10-07
4bcc428 cfcforever 2021-10-07
